Specification
|

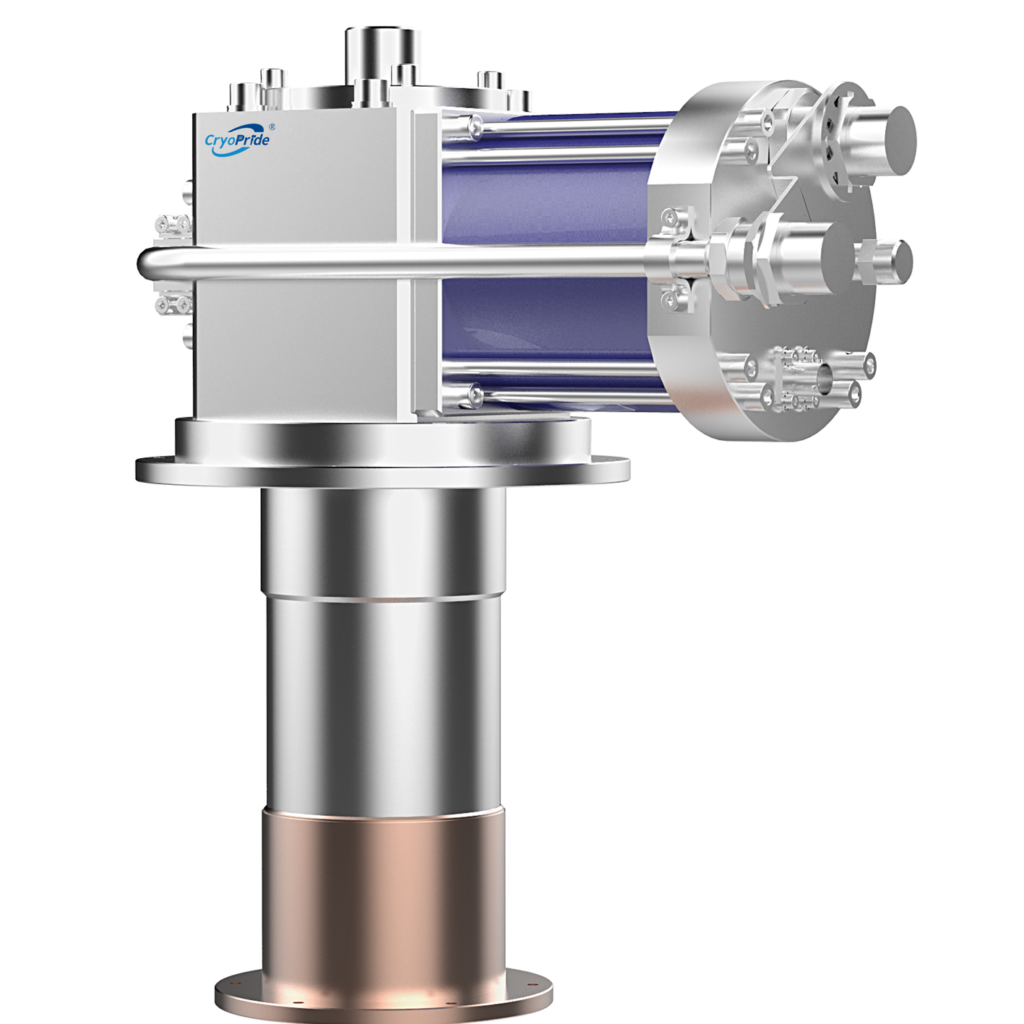

Coldhead Type |
KDE400SA |
||
|
Lowest Temperature： |
＜ 30K |
||
|
Cooling Capacity (50Hz)： |
First Stage |
/ |
|
|
54W @40K |
/ |
||
|
Cool down Time（1st stage）： |
＜40K(30min) |
||
|
Weight： |
Coldhead |
Compressor |
|
|
16.8 kg |
118 kg |
||
|
Compressor Type： |
KDC6000V |
||
|
Power Consumption(50Hz) |
Steady |
Cooldown |
|
|
6.5kW |
7.2kW |
||
|
Cooling Type: |
Water |
||
|
Cooling Water Requirement： |
﹥ 7 L/min |
||
|
Standard Flexline： |
20A×20m |
||
|
Maintenance Interval： |
Coldhead |
||
|
18 moth |
|||
Environmental Requirement:
|
Item |
Operating |
Storage |
|
Ambient Temperature |
4-40 ℃ |
-20-65 ℃ |
|
Relative Humidity |
30%-70% |
10%-90% (Requiring No-condensing) |
|
Ambient atmospheric pressure |
70kPa~110kPa |
20kPa~110kPa |
Outline Drawing:
Tipical Load Map:
